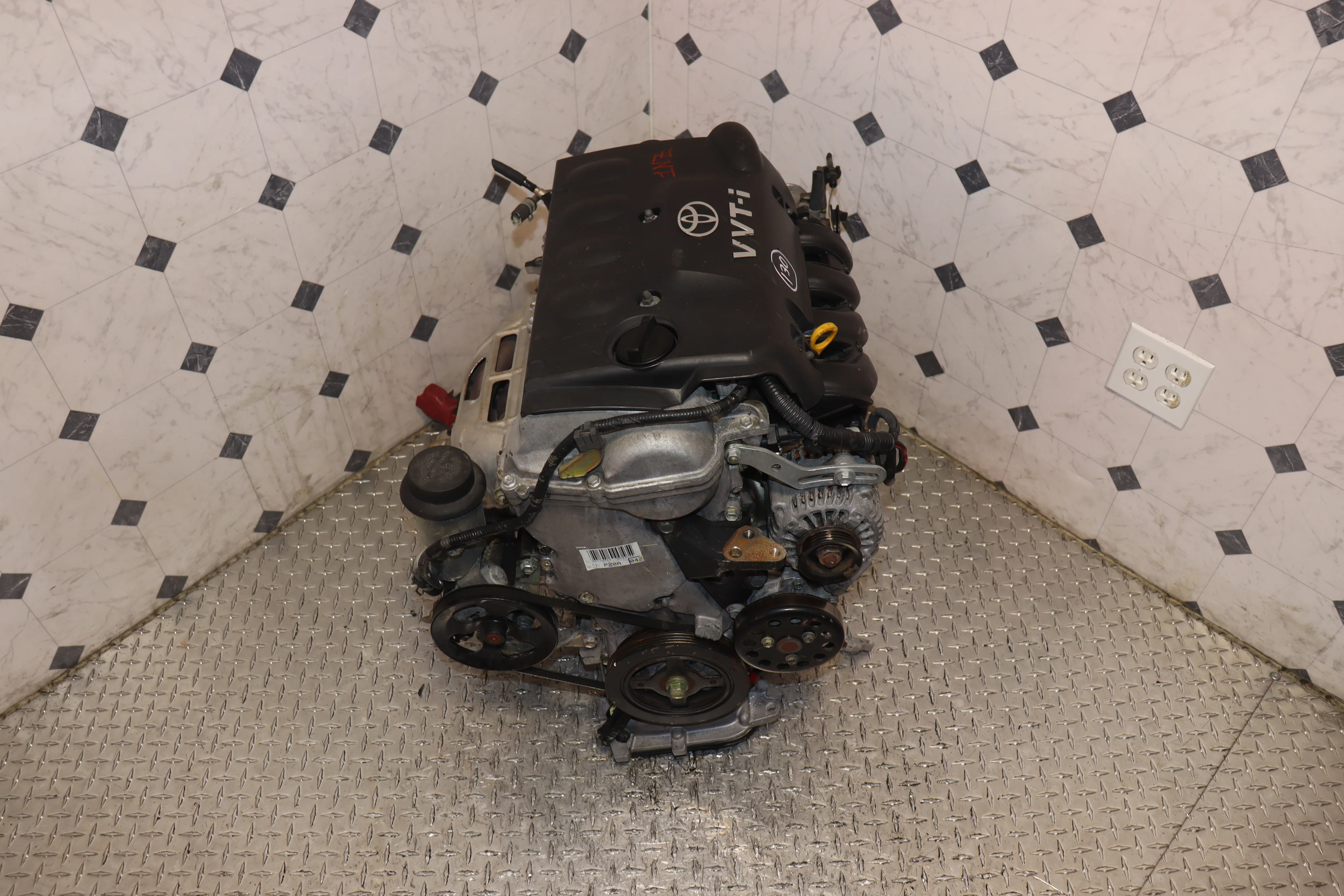

2000 2001 2002 2003 2004 2005 Toyota Echo 1.5L DOHC VVTi Engine JDM 1NZ-FE

Feature	Specification
Engine Code	1NZ-FE
Displacement	1.5 Liters (1497 cc)
Cylinder Layout	Inline 4-Cylinder
Valvetrain	DOHC, 16-Valve, VVT-i
Horsepower	108 HP @ 6,000 RPM
Torque	105 lb-ft @ 4,200 RPM
Fuel System	Multi-Port Electronic Fuel Injection (EFI)
Timing	Maintenance-free Timing Chain



Vehicle Fitments

This JDM 1NZ-FE is a direct long block replacement for the following USDM models:

• 2000-2005 Toyota Echo (All trims)



• Installation & Technical Notes

  To ensure a "Plug-and-Play" installation and keep your vehicle emissions-compliant, please follow these expert notes:

  • Long Block Swap: This engine is sold as a JDM Long Block (Head and Block). You must transfer your original USDM intake manifold, exhaust manifold, sensors, and wiring harness from your old engine.

  • VVT-i Solenoid: While the JDM engine includes a VVT-i solenoid, we recommend inspecting yours and using the one that matches your original wiring plug.

  • Maintenance Items: For the best results and to maintain your warranty, replace the following prior to installation:

    • Water Pump: A fresh OEM-spec pump ensures cooling reliability.

    • Spark Plugs: Use NGK Iridium or Denso K16R-U11.

    • Front & Rear Main Seals: It is significantly easier to replace these while the engine is out.

  • Oil Recommendation: Use high-quality 5W-30 synthetic oil and a genuine Toyota (90915-YZZF2) oil filter.

  • Non-EGR Units: Note that JDM engines often do not have EGR ports. By using your USDM intake and exhaust components, you will maintain factory emissions standards.
